customized precision assemble line tooling

Precision Assemble Line Tooling application

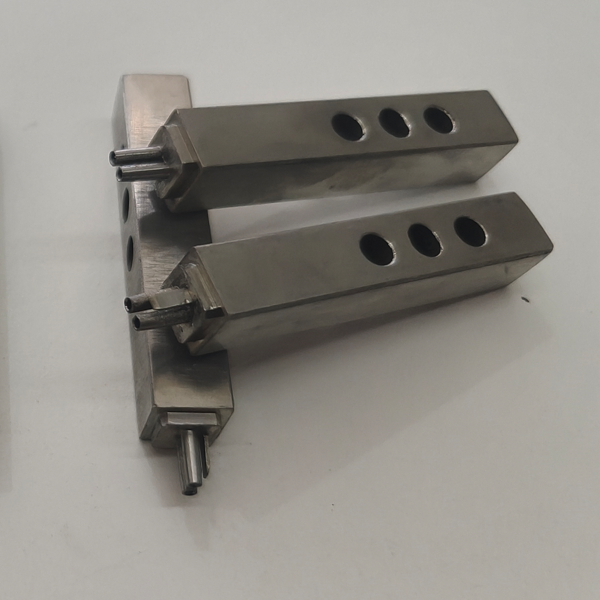

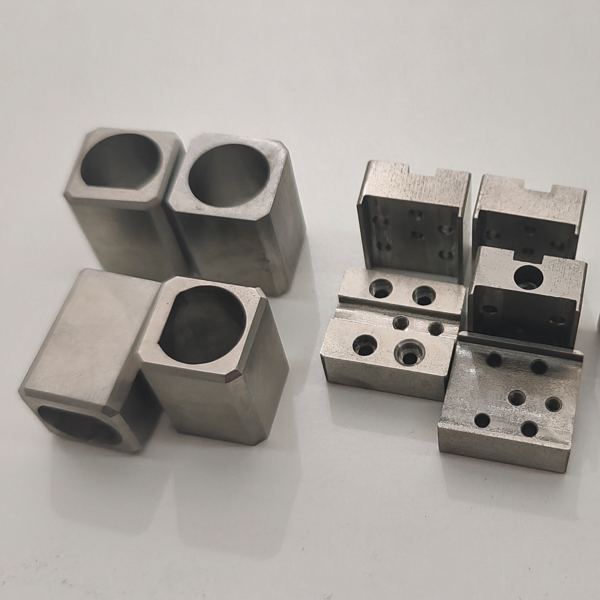

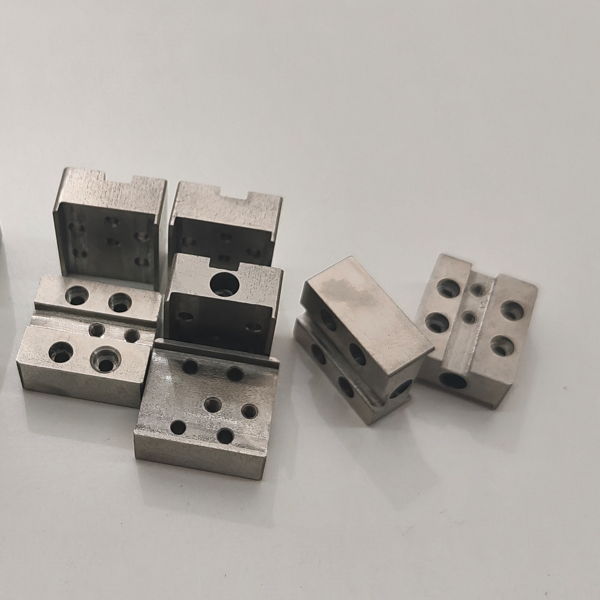

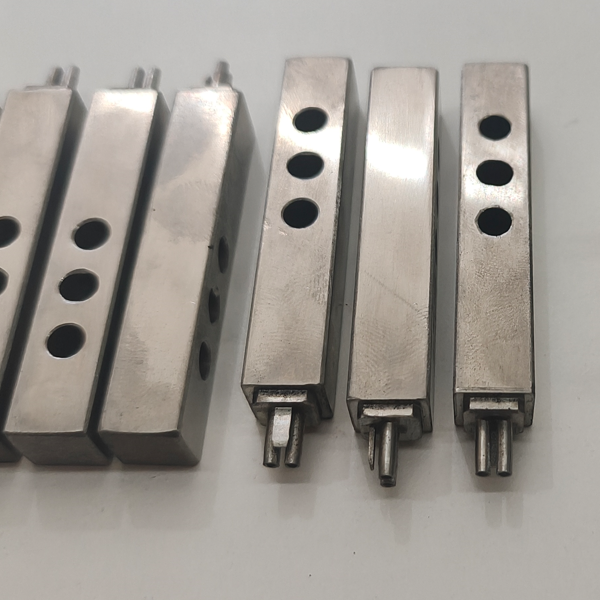

• These pictures and drawings are our customized products. It shows our supply ability. Due to the Intellectual Property, it's only for reference.

• Assemble Line work fixture& tooling devices are for the factory automation processing line.

• Good consistency, stable quality, precision tolerances +/-0.002mm to +/-0.005mm.

• Almost zero repair rate and defective products, all replacement or repair for free due to our fault.

• ISO quality assurance system.




Other precision punches and dies parts we can supply for example: the precision dies/moulds, header punch or parts for assemble line to support the movement and working position flow of the machines as below, these are practical cases we've done.

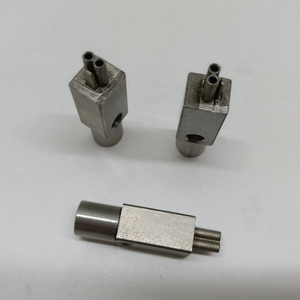

1) Header punch, press head, punch head  to press and assemble different section and parts togather.

2)  Punch pins, ejector pins for mould /die parts

3) Relevant parts we can do -precision edge-closing die
