Name: test tooling work fixture
Material: SKH51, SUJ2, SKD11,HSS…etc.
Hardness: 40-64HRC
Tolerance: +/-0.002mm to +/-0.005

  • MWMP-19200901

  • yes

  • polishing finish

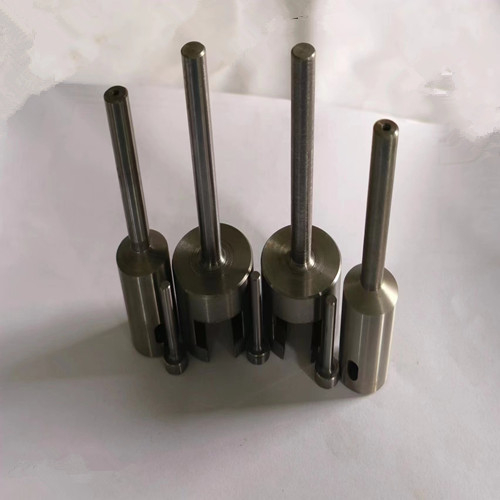

Work fixture and tooling for test application

  • These pictures and drawings are our customized products. It shows our supply ability.

  • Assemble line work fixture& tooling devices and components are the key back up for the factory automation processing line.

  • Inspection and test tooling products are assemble line tools for testing and inspecting the positions, directions, sizes, height, depth or space capacity to assure the correct result of the previous step and prepare for next work step. We can produce similar parts according to your drawings.

Work fixture and tooling parts for inspection & test customization

  • Various of metal materials with different surface treatments are adopted to satisfy with your requirements and keep efficient

    running of your production line. Since the work fixture tooling and parts are closely connected with the practical production

    scenes and conditions, we produce customer orientated and non-standard OEM products.

  • You need to provide clear drawings and requirements so as to for our engineers understand thoroughly. Our regular service

    scope as following but not limited, up to your drawings:

Assemble Line Work Fixture and Tooling,

Height Detection Mechanism Tooling,

Inspection Work Fixture and Tooling,

Cutting Work Fixture and Tooling,

Testing Work Fixture and Tooling,

Measuring Work Fixture and Tooling…

Non-Standard Mechanical Parts for Assemble Line,

Assemble Line Punch,

Assemble Line Head Punch,

Assemble Line Connecting -Adapter Parts,

Assemble Line Mounting Plate Components,

Assemble Line Metal Gripper,

Assemble Line Guide Sleeves,

Assemble Line Orientation Inserts,

Assemble Line Flange Connector parts,

Assemble Line Device,

Orientation Parts for Assemble Line,

Work fixture and tooling features

  • Almost zero repair rate and zero defective products, all replacement or repair for free due to our fault within 1 year warranty period.

  • Quality control assurance.

  • Fast after-sale respond.

Work fixture and tooling packaging

Inner: bubble bag, PE bag or plastic seal with anticorrosive oil plus outer carton box, or other safe package.

Our cases of work fixture and tooling for measuring, cutting, inspecting...

1) Location gauge for assemble line devices

customized inspection tooling-MWMECHPARTS

non standard measuring locating tool supplier-MWMECHPARTS

2) Cutting and dividing tooling for assemble line

customized dividing and cutting tooling-MWMECHPARTS

3)Inspection tooling for detecting the die/mould cavity sizes

customized mold detection tooling and fixture-MWMECHPARTS

non standard measuring tooling supplier-MWMECHPARTS


Q: What service can you do?

A: OEM/ODM. Free samples available after price confirmed, but you need to share the sample freight. We produce the parts per customers'drawing or sample. Concerning the protection of customers'intellectual property, we don't sell our customers'same product to the third party.

Q: What data should the customer provide for a precise quotation?

A: The drawings or samples, quantity, tolerance, standard, material, surface finish, other special requirements, etc.

Q: What're your delivery methods?

A: DHL, EMS, UPS, land transport or sea freight available.

Q: How do you assure the quality control?

A: Full inspection with test report and material composition certificate for each order and 1-year after-sale service for free repair or replacement for deficit products. Almost zero repair rate and defective products all replacement or repair for free.

Q: How long is your lead time?

A: 10-30days up to the quantity.

Q: what surface treatments can you deal with?

A: Titanium nitride (TiN), TiCN, titanium plating, blackening, carburize, zinc plating, zinc coating,  galvanization, chrome plate, etc.

Q: what's your payment term?

A: T/T, L/C, western Union, PayPal, etc.
