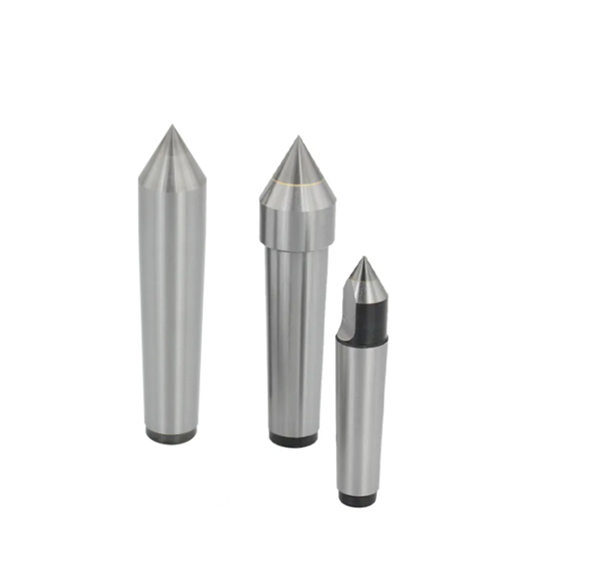

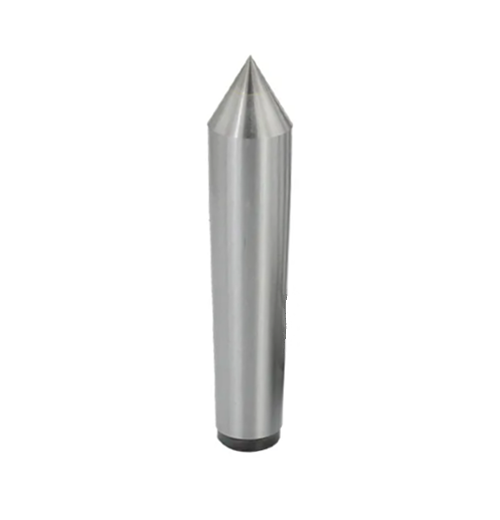

Morse Dead Taper Center Morse Dead Taper Center
Morse Dead Taper Center Morse Dead Taper Center


Morse Dead Taper Center

Share to:
Name: morse dead taper center; morse taper dead center

  • MWM-191206

  • 40Cr, Carbide tip


Morse Lathe Taper Center Application

General Use of the CNC Morse Taper Centers

In the case of accurately repeating positioning, as a positioning reference, they can improve the clamping accuracy and reduce the vibration during the processing.

Classification: Rotary centers (live centers); Integral centers (dead centers)

Common Uses of Different Types of CNC Morse Taper Centers

Light duty CNC rotary precision live centers are mainly used for processing shaft sleeve parts on small lathes. The center hole positioning make the machined parts have high dimensional accuracy. Light duty rotary centers possess high precision, high rotary speed, they are essential accessories for small precision lathe high-speed cutting work.

Medium rotary CNC Morse taper live centers are mainly used for processing shaft sleeve parts on general lathes. With the help of center hole positioning, the machined parts have high dimensional accuracy.

Heavy-duty rotary CNC Morse taper live centers are mainly used for processing shaft sleeve parts on larger lathes. Due to the large load, they are suitable for high- speed-strong-force cutting.

The bull-nose type rotary live centers are mainly used for machining bushes and tubes parts on the lathe. They make the machined parts have high dimensional accuracy.

The CNC Morse taper dead centers are mainly used for lathes, grinding and milling machines to process shafts and bushes parts.

The CNC Morse taper carbide tips have higher hardness, thus possess better cutting performance.

Morse Taper Models have MS0/MS1/MS2/MS3/MS4/MS5/MS6 seven models, each nominal diameter in sequence is: 9.045, 12.065, 17.78, 23.825, 31.267, 44.399, 63.348.

Specifications of Morse Taper Dead Centers MT1 MT2 MT3 MT4 MT5 Carbide Tip

说明: C:\Users\asus\AppData\Roaming\Tencent\Users\1021233739\QQ\WinTemp\RichOle\QB7Y7)VVTTIS2(9SF`TH4FF.png

Standard MS1/2/3/4/5/6/7.

Accuracy: 0.01mm (under zero load)

Speeds: Min.2000rpm
Body material: 40Cr; HRC45-55

Carbide tip material: YG8, HRC89

Sample: available
Lead time: 15-25days
OEM: support

Warranty: 6 months

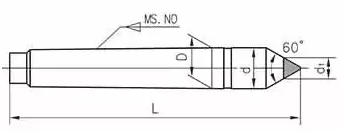

morse taper dead center-MWMECHPARTS

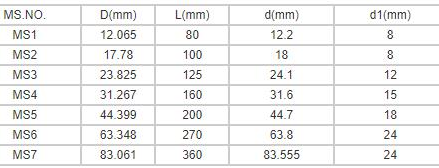

CNC dead taper centers specification sheet-MWMECHPARTS

Morse Dead Taper Center Packaging

Regularly packed in carton or plastic boxes.

CNC Precision Mechanical Parts Surface Treatment Methods

The main surface treatment methods of precision mechanical parts are: electroplating, spraying, polishing, anodizing, blackening, etc.

The function is to improve the appearance, the corrosion resistance and wear resistance of the parts. Each has its unique utility environment and condition, advantages and disadvantages.

You may choose surface treatment according to your needs. Below are some usual methods we use.

Surface Treatment-MWMECHPARTS


Q: What service can you do?

A: OEM/ODM. Free samples available after price confirmed, but you need to share the sample freight. We produce the parts per customers'drawing or sample. Concerning the protection of customers'intellectual property, we don't sell our customers'same product to the third party.

Q: What data should the customer provide for a precise quotation?

A: The drawings or samples, quantity, tolerance, standard, material, surface finish, other special requirements, etc.

Q: What're your delivery methods?

A: DHL, EMS, UPS, land transport or sea freight available.

Q: How do you assure the quality control?

A: Full inspection with test report and material composition certificate for each order and 1-year after-sale service for free repair or replacement for deficit products. Almost zero repair rate and defective products all replacement or repair for free.

Q: How long is your lead time?

A: 10-30days up to the quantity.

Q: what surface treatments can you deal with?

A: Titanium nitride (TiN), TiCN, titanium plating, blackening, carburize, zinc plating, zinc coating,  galvanization, chrome plate, etc.

Q: what's your payment term?

A: T/T, L/C, western Union, PayPal, etc.

Focus on the resolutions and the figures behind 0.000mm.
